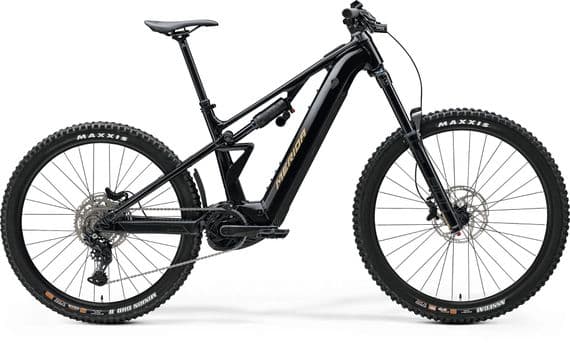

Home / Bikes Currently In Store / E - Bikes Product Description Specification Frame LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” Motor Bosch Performance Line CX Battery Bosch PowerTube 600; 600Wh Battery Capacity 600Wh eBike Display Bosch Purion 200 Shock SR Suntour TRIAIR2 Fork SR Suntour Aion 38X; Air; 180mm travel; Tapered; 44mm fork off set; 29x2.4" max. tyre size Gears 9 Shifters Shimano Cues U4000-9 Rear Derailleur Shimano Cues U4000; GS Bottom Bracket Attached Chain Shimano LG500 Chainset FSA Direct Mount Steel Chainring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes Cassette Shimano LG400-9; 11-46 teeth; 9 speed Brake Lever Tektro Gemini Front Brake Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor Rear Brake Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor Grip Merida Expert EC Handlebar Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise Stem Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes Head Set Acros ICR Merida external neck with Blocklock Pedal VP VPE-533 Saddle Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool Seat Post Merida Expert TR II; 34.9mm diameter; 0 mm lay back; XS: 125mm travel - S: 150mm travel- M/L/XL: 200mm travel - XL: 230mm travel Wheel Size 29" / 27.5" Rims Merida Expert TR II; 110x15 WHF; 148x12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" Spokes Black stainless Front Hub Shimano TC500-B; 15x100mm; 32 spoke; Centerlock Rear Hub Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key Front Tyre Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip Rear Tyre Maxxis Minion DHR II; 27.5x2.4"; kevlar bead; 3C DD TR MaxxTerra Colour Glossy Black Season 2025 Front Light Lezyne Hecto StVZO E350+ Reverse Rear Light CG-404RG-BLK Description Specification Frame LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” Motor Bosch Performance Line CX Battery Bosch PowerTube 600; 600Wh Battery Capacity 600Wh eBike Display Bosch Purion 200 Shock SR Suntour TRIAIR2 Fork SR Suntour Aion 38X; Air; 180mm travel; Tapered; 44mm fork off set; 29x2.4" max. tyre size Gears 9 Shifters Shimano Cues U4000-9 Rear Derailleur Shimano Cues U4000; GS Bottom Bracket Attached Chain Shimano LG500 Chainset FSA Direct Mount Steel Chainring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes Cassette Shimano LG400-9; 11-46 teeth; 9 speed Brake Lever Tektro Gemini Front Brake Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor Rear Brake Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor Grip Merida Expert EC Handlebar Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise Stem Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes Head Set Acros ICR Merida external neck with Blocklock Pedal VP VPE-533 Saddle Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool Seat Post Merida Expert TR II; 34.9mm diameter; 0 mm lay back; XS: 125mm travel - S: 150mm travel- M/L/XL: 200mm travel - XL: 230mm travel Wheel Size 29" / 27.5" Rims Merida Expert TR II; 110x15 WHF; 148x12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" Spokes Black stainless Front Hub Shimano TC500-B; 15x100mm; 32 spoke; Centerlock Rear Hub Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key Front Tyre Maxxis Assegai; 29x2.5"; kevlar bead; TR EXO+ 3C MaxxGrip Rear Tyre Maxxis Minion DHR II; 27.5x2.4"; kevlar bead; 3C DD TR MaxxTerra Colour Glossy Black Season 2025 Front Light Lezyne Hecto StVZO E350+ Reverse Rear Light CG-404RG-BLK Delivery & Returns Merida eOne-Eighty 400 - Long Item in Stock (1 Available) £4,899.00 Login to add this product to your wishlist.
