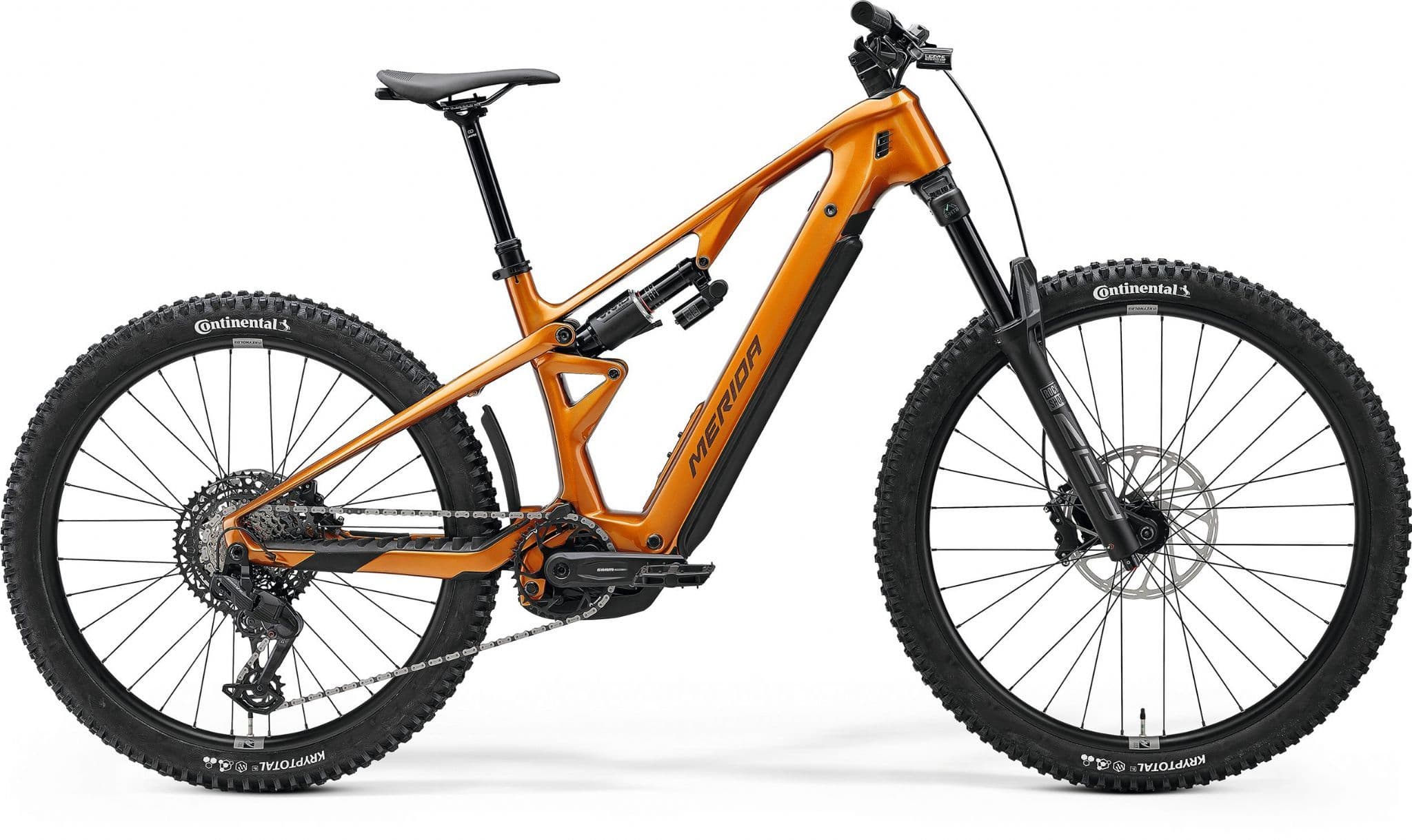

The Lithos 6000 delivers a huge dose of e-enduro performance and value for any rider or racer. We've taken our carbon fibre, 170 mm travel frame and equipped it with the hugely strong Bosch CX drive unit and a removable 800 Wh battery, so it's ready to ride and rip, whatever turn the trail takes. Planted handling and sublime traction from our race-derived geometry and kinematics are paired with high-value, high-performance components. The RockShox Zeb Select fork and Vivid shock deliver impressive control, while four-piston brakes will deal with excess momentum with ease. Add in the tough Reynolds wheelset, grippy Continental tyres and a rock-solid SRAM Eagle drivetrain, and you're good to go.
Even in the most imposing terrain, it is possible to find flow. Named after the Ancient Greek for rock, the Lithosis designed for serious enduro riders and racers, with a single-minded focus on speed, no matter what turn the trail takes.
With a full carbon frame and 170 mm of travel at either end, it’s built for the toughest tracks, pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed, no matter what the gradient or ground. The geometry is made to maximise traction on flat turns and confidence on steep sections with a longer chainstay and higher stack, while travel-adjustable dropper posts and our AGILOMETER sizing mean you can fine-tune fit and handling.
Because you need absolute faith in your setup for flat-out technical riding, we doubled down on versatility, durability and reliability when creating the Lithos. That’s why we use the latest Bosch CX and CX Race drive units plus 600 and 800 Wh batteries, giving big-brand performance with proven worldwide sales support.
You can run a lightweight 600 Wh battery for agile handling or a high-capacity 800 Wh for the big days, plus it’s possible to route the cables cleanly through our Wire Port or semi-externally via headtube ports if you need rapid access. We also give the choice of running a full 29” setup for flat-out speed or the standard mixed 29/27.5” setup to retain plenty of agility, while both air and coil rear shocks will work perfectly.
satellite_charging_port Bosch Cable PowerTube Charging Socket 350mm
frame LITHOS CF
frame size XShort, Short, Mid, Long, XLong
shock Rock Shox Vivid
fork Rock Shox Zeb Select eMTB
motor unit MERIDA CR-053 battery Cover with Fidlock
drive unit Bosch Performance Line CX
battery Bosch PowerTube 800 vertical
battery charger Bosch 4A Charger (220-240V)
display Bosch Kiox 400C
switch Bosch Mini Remote
speed sensor Bosch Speedsensor Cable Slim 615mm
rim Reynolds 309 Enduro Comp
hubs Novatec SL-Team D041SB-B15 / Novatec SL-Team D952RSB
front tyre Continental Kryptotal-F
rear tyre Continental Kryptotal-R
Hubs MERIDA EXPERT TR
chainwheel Sram Eagle Transmission E-MTB for BOSCH
crank Sram S1000 Eagle E-MTB Crank, 160mm all sizes
Cassette Sram XS-1270 T-TYPE
chain Sram Eagle 70
shifters Sram dropper lever MMX / Sram Eagle 70 Transmission
rear derailleur Sram Eagle 70 Transmission
brakes Sram DB6 stealth
rotors Sram CenterLine
headset Acros ICR MERIDA INTEGRATED neck w/ Blocklock
Stem MERIDA EXPERT eTR II
stem size 40 mm
handlebar MERIDA EXPERT eTR
grip MERIDA COMP TR
seat post MERIDA EXPERT TR II
saddle MERIDA COMP SL
seat clamp MERIDA EXPERT
lights Litemove SEC110 / Chance Good CG-214RG
mudguard RF-001 mini fender
pedal VP VPE-533
approx. weight 24.9 kg
