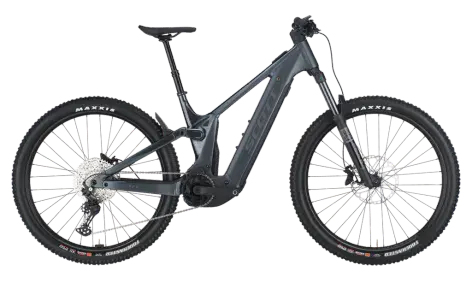

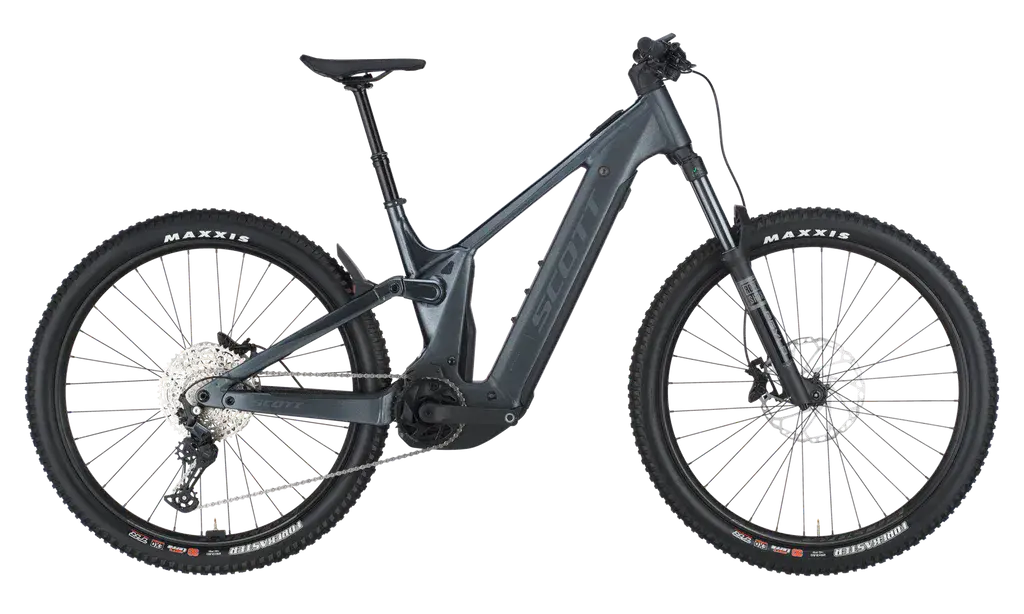

The strength of a powerlifter, with marathon endurance and the physique of a gymnast. For the mountain biker looking to unlock new zones and ride more terrain than ever, the ALL-NEW Patron eRIDE holsters the cutting edge of full-power moter and battery technology in a package built for singletrack domination. Harness the power. Master the trails.
- Frame
- Alloy Frame
- Integrated Suspension Technology
- Virtual 4 Link kinematic / Adjustable head angle
- Syncros Cable Integration System
- Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline
- Bosch PowerMore Ready
- Travel
- Front: 150mm / Rear: 150mm
- Fork
- RockShox Psylo Silver RC Air / E-Bike / Comp & Reb Adj. / QR Axle 15x110mm axle
- 44mm offset / tapered steerer / 150mm travel
- Rear Shock
- X-Fusion NUDE 5 RLX Trunnion
- SCOTT custom w. travel / geo adj.
- 3 modes: Lockout-Traction Control-Descend
- Reb. Adj.
- Travel 150-100-Lockout / T185X55mm
- Remote System
- SCOTT TracLoc 2 Technology
- Suspension & Dropper Remote
- 3 modes
- Drive Unit
- Bosch Performance CX
- EU: 25kmh / INT: 20mph
- Battery
- PowerTube 800Wh
- Display
- Bosch System Controller
- Mini Remote & Intuvia 100
- Charger
- 4A Charger
- Rear Derailleur
- Shimano Deore RD-M6100 SGS
- Shadow Plus / 12 Speed
- Shifters
- Shimano Deore SL-M6100-IR / Rapidfire Plus
- Crankset
- FSA Alloy
- Chainguide
- e*thirteen / e*spec Slider
- Chainring
- FSA 12 Speed 34T chainring
- Chain
- Shimano CN-M6100
- Cassette
- Shimano CS-M6100 / 10-51
- Brakes
- Shimano MT520 4 Piston Disc
- Rotor
- Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm
- Handlebar
- Syncros Hixon 2.0 Alloy 6061
- Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm
- Syncros Endurance lock-on grips
- H'stem
- Syncros AM 2.0
- Syncros Cable Integration System
- 4° rise / 6061 Alloy / 31.8mm / 1 1/8"
- Seatpost
- Syncros Duncan Dropper Post 2.5
- 31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm
- Seat
- Syncros Tofino-E 2.5 Regular
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment
- ZS56/28.6 – ZS56/40 MTB
- Hub (Front)
- Formula CL-811 / 15x110mm
- Hub (Rear)
- Formula ECT-148M / Boost 148x12mm
- Spokes
- Stainless Black
- Rims
- Syncros MD30 / 32H / 30mm / Pin Joint
- Tubeless ready
- Front Tire
- Maxxis Forekaster 29x2.6"
- 120TPI Foldable Bead
- EXO / TR Tubeless ready
- 3C Maxx Terra
- Rear Tire
- Maxxis Forekaster 29x2.6"
- 120TPI Foldable Bead
- EXO / TR Tubeless ready
- 3C Maxx Terra
- Lights
- Syncros integrated rear fender light
- Front Light Cable pre-installed
| Brand | scott |
